Wheel Weight WL604

$119.00

125 Pound Stacking Wheel Weight

Mounting Pattern: 4@11 3/8″ or 4@12 3/4″

Availability: In stock

Not sure if this fits your equipment?
Please review the “Click for Fitment & OEM Reference +” tab and all other tabs below before ordering. Model listing alone does not guarantee fit. Verify your wheel weight mounting pattern, wheel diameter, and clearance.
Contact product support if you need help confirming fitment.
  • Aftermarket Wheel Weight, Global Sourcing
  • New Cast Iron
  • 125 Pounds Each
  • Will Stack
  • Color: Gloss Black Type: Polyurethane
  • Outer Diameter is 20″
  • Inner Diameter is 11″
  • Thickness is 2 3/4″
  • Mounting REQUIRES 4@11 3/8″ or 4@12 3/4″ pattern in wheel.
  • ⚠ CALIFORNIA WARNING: Cancer and Reproductive Harm.  See: www.P65Warnings.ca.gov

WL604-B-01

Will fit (models with correct wheel size and mounting patterns):

AGCO
Agco RT100A, RT110A, RT120A, RT140A, RT155A, RT165A, RT180A, DT180A, DT200A, DT220A, DT240A, DT205B, DT225B, DT250B, DT275B, DT160, DT180, DT180A, DT200, DT200A, DT205B, DT220A, DT225, DT225B, DT240A, DT250B
CASEIH
Case 395, 495, 595, 695, 795, 895, 995, 385, 485, 585, 685, 785, 885, 3220, 3230, 4210, 4230, 4240, C50, C60, C70, C80, C90, C100, CX50, CX60, CX70, CX80, CX90, CX100
CHALLENGER
Challenger MT525B, MT535B, MT545B, MT555B, MT565B, MT575B, MT585B, MT595B, MT645D, MT655D, MT665D, MT675D, MT685D, MT635, MT645, MT655, MT665, MT635B, MT645B, MT655B, MT665B, MT645C, MT655C, MT665C, MT675C

Challenger MT525B, MT535B, MT545B, MT555B, MT565B, MT575B Not Tier 3

KUBOTA (Will fit but not the preferred weight for these models)
Kubota M4950, M5950, M6800, M6950, M7950, M8200, M8540, M8580, M8950, M895, M7580, M8580, M9580, M-110, M-120
MASSEY FERGUSON
Massey Ferguson 2605, 2615, 2625, 2635, 6465, 6470, 6475, 6480, 6485, 6490, 6495, 6497, 6499, 7465, 7475, 7480, 7485, 7490, 7495, 7497, 7499,7619, 7620, 7622, 7624, 8650, 8660, 8670, 8680, 8690,
240, 231, 231S, 241, 251, 261, 271, 271X, 281, 281X, 243, 253, 263, 273, 283, 431, 441, 451, 461, 471, 481, 491, 492, 496, 471-796 LP, 533, 543, 563, 573, 583, 593, 596, 8220, 8240, 8245, 8250, 8260, 8270, 8280, 8450, 8460, 8470, 8480

QUESTIONS ABOUT FITMENT?  CONTACT PRODUCT SUPPORT!

  • Typically fits 28″-38″ Wheels With Correct Mounting Pattern.
  • Mounting Pattern 4@11 3/8″
  • Mounting Pattern 4@12 3/4″
  • One of the Weight Mounting Patterns Must Match Wheel Mounting Pattern
  • ⚠ When Choosing and Installing Ballast Weights: ALWAYS refer to the recommendations contained in the owner’s manual for your equipment. ALWAYS refer to the maximum load rating of your tires.

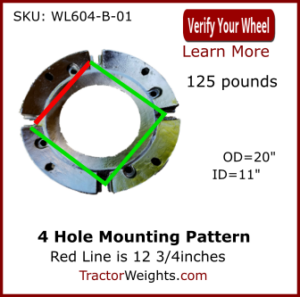

WL604 Mounting Pattern Image-1    WK604 Mounting Pattern Image 2

  • Ships Truck Freight Only.
  • Shipping cost will be calculated during checkout and depends on the total weight of the order.
  • See the Shipping FAQ for more information.

The Tractor Weight Store™

OEM Reference / Conditional Model Applications

Important Fitment Notice: Model listing alone does not guarantee fit. Verify wheel weight mounting pattern, wheel diameter, and clearance before ordering.

Required Wheel Weight Mounting Pattern

Important measurement note: These measurements refer to the wheel weight mounting holes in the wheel. Measure the center-to-center chord length between the wheel weight mounting holes. Do not use tractor wheel lug nut spacing, hub bolt pattern, rim bolt pattern, or wheel center bolt measurements. See our wheel weight mounting pattern measurement guide.
PatternHole CountChord Measurement
4@11.375 in411.375 in
4@12.750 in412.75 in

Need help? Contact product support with your tractor model, wheel diameter, number of wheel weight mounting holes, and center-to-center chord measurement between the wheel weight mounting holes.

Need help with fitment terms? Review mounting patterns, chord length, starter weights, and clearance. See the Tractor Weight & Ballast Glossary.

Conditional Model Applications

The models below are conditional OEM-reference applications. Model listing alone does not guarantee fit. Verify your wheel weight mounting pattern before ordering. May fit additional models not listed here. Please see Understanding conditional fit.

Showing 161 model applications.
MakeModelSeriesFitment StatusRequired NotesVerify Before Ordering
AGCODT160DT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT180DT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT180ADT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT200DT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT200ADT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT205BDT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT220ADT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT225DT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT225BDT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT240ADT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT250BDT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCODT275BDT SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCORT100ART SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCORT110ART SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCORT120ART SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCORT140ART SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCORT155ART SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCORT165ART SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
AGCORT180ART SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH32203200 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH32303200 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH38585 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH39595 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH42104200 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH42304200 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH42404200 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH48585 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH49595 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH58585 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH59595 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH68585 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH69595 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH78585 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH79595 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH88585 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH89595 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IH99595 Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHC100C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHC50C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHC60C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHC70C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHC80C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHC90C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHCX100CX Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHCX50CX Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHCX60CX Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHCX70CX Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHCX80CX Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Case IHCX90CX Utility SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT525BMT500B SeriesConditional fitWill Not Fit Tier 3 Modelswheel weight mounting pattern, wheel diameter/clearance
ChallengerMT535BMT500B SeriesConditional fitWill Not Fit Tier 3 Modelswheel weight mounting pattern, wheel diameter/clearance
ChallengerMT545BMT500B SeriesConditional fitWill Not Fit Tier 3 Modelswheel weight mounting pattern, wheel diameter/clearance
ChallengerMT555BMT500B SeriesConditional fitWill Not Fit Tier 3 Modelswheel weight mounting pattern, wheel diameter/clearance
ChallengerMT565BMT500B SeriesConditional fitWill Not Fit Tier 3 Modelswheel weight mounting pattern, wheel diameter/clearance
ChallengerMT575BMT500B SeriesConditional fitWill Not Fit Tier 3 Modelswheel weight mounting pattern, wheel diameter/clearance
ChallengerMT585BMT500B SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT595BMT500B SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT635MT600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT635BMT600B SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT645MT600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT645BMT600B SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT645CMT600C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT645DMT600D SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT655MT600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT655BMT600B SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT655CMT600C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT655DMT600D SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT665MT600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT665BMT600B SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT665CMT600C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT665DMT600D SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT675CMT600C SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT675DMT600D SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
ChallengerMT685DMT600D SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
KubotaM-110Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM-120Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM4950Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM5950M50 SeriesConditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM6800Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM6950Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM7580M80 SeriesConditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM7950M50 SeriesConditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM8200Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM8540M40 SeriesConditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM8580M80 SeriesConditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM895Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM8950Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
KubotaM9580Conditional fitWill fit, but not the preferred weight for this model.wheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson231200 One SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson231S200 One SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson240200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson241200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson243200 Three SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson251200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson253203 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson26052600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson261200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson26152600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson26252600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson263200 Three SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson26352600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson271200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson271X200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson273200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson281200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson281X200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson283200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson431400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson441400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson451400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson461400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson471400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson471-796 LPConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson481400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson491400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson492400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson496400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson533500 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson543500 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson563500 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson573500 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson583500 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson593500 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson596500 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64656400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64706400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64756400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64806400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64856400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64906400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64956400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64976400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson64996400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74657400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74757400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74807400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74857400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74907400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74957400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74977400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson74997400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson76197600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson76207600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson76227600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson76247600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson82208200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson82408200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson82458200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson82508200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson82608200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson82708200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson82808200 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson84508400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson84608400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson84708400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson84808400 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson86508600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson86608600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson86708600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson86808600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Massey Ferguson86908600 SeriesConditional fitwheel weight mounting pattern, wheel diameter/clearance
Scroll to Top
