Ballast Reference Chart

Tire Fluid Fill Chart by Tire Size

This chart lists approximate gallons per tire and approximate added weight per tire for beet juice, calcium chloride, water, and antifreeze. It is a quick reference for comparing liquid ballast by tire size.

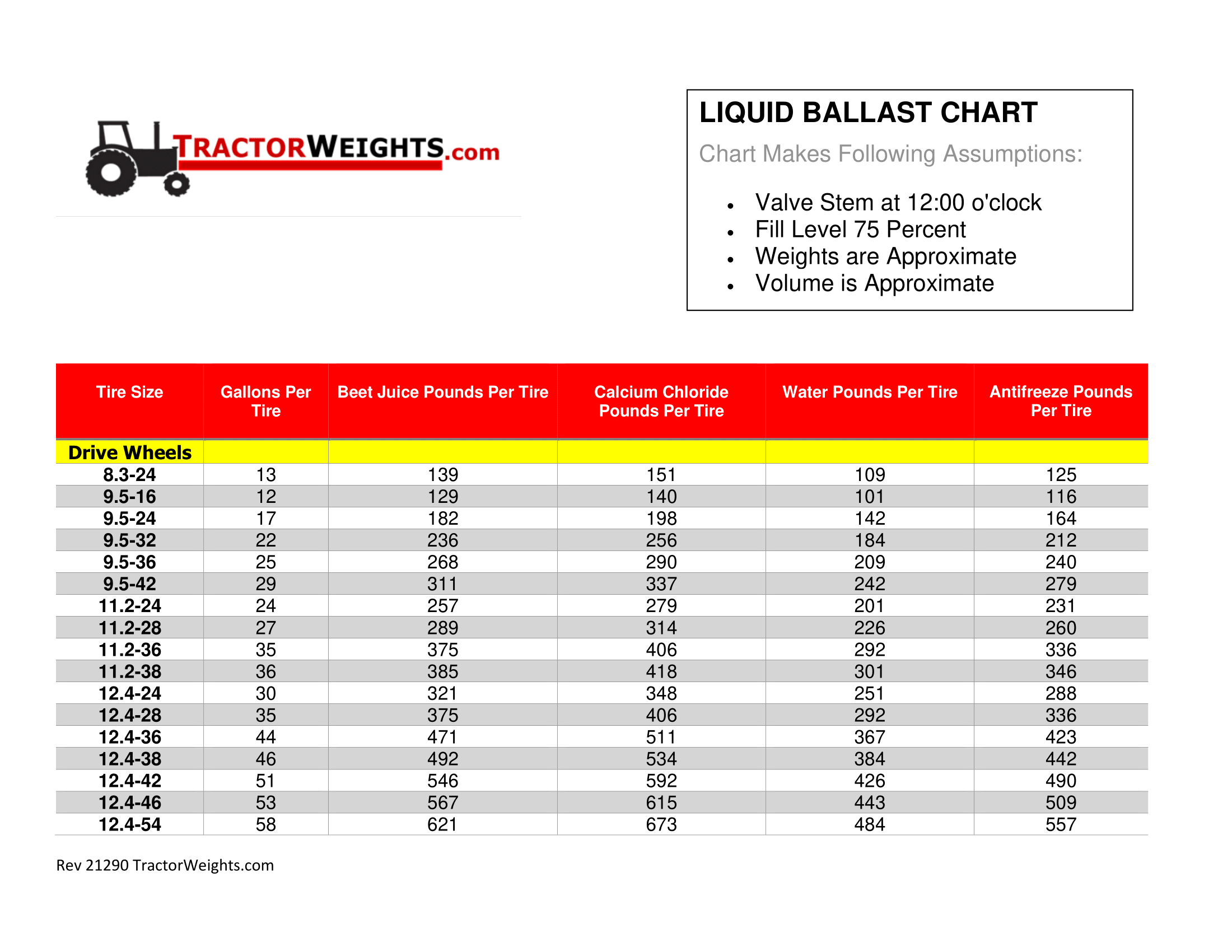

Chart assumptions

Valve stem at 12:00 o'clock
Fill level 75 percent
Weights are approximate
Volume is approximate

Important notes

When you choose to use fluid as ballast, bias-ply tires work best. Consult a tire professional if you are considering fluid ballast in radial, LSW, IF, or VF tires.

The values below are intended as a practical reference. Tire size labels are reproduced from the source chart exactly as shown, including any abbreviations or irregular source formatting.

Showing all 254 tire sizes.

On desktop and tablet screens, each table's column labels remain visible while you scroll through that category. Phone layouts use labeled cards instead.

Drive Wheels

131 tire sizes

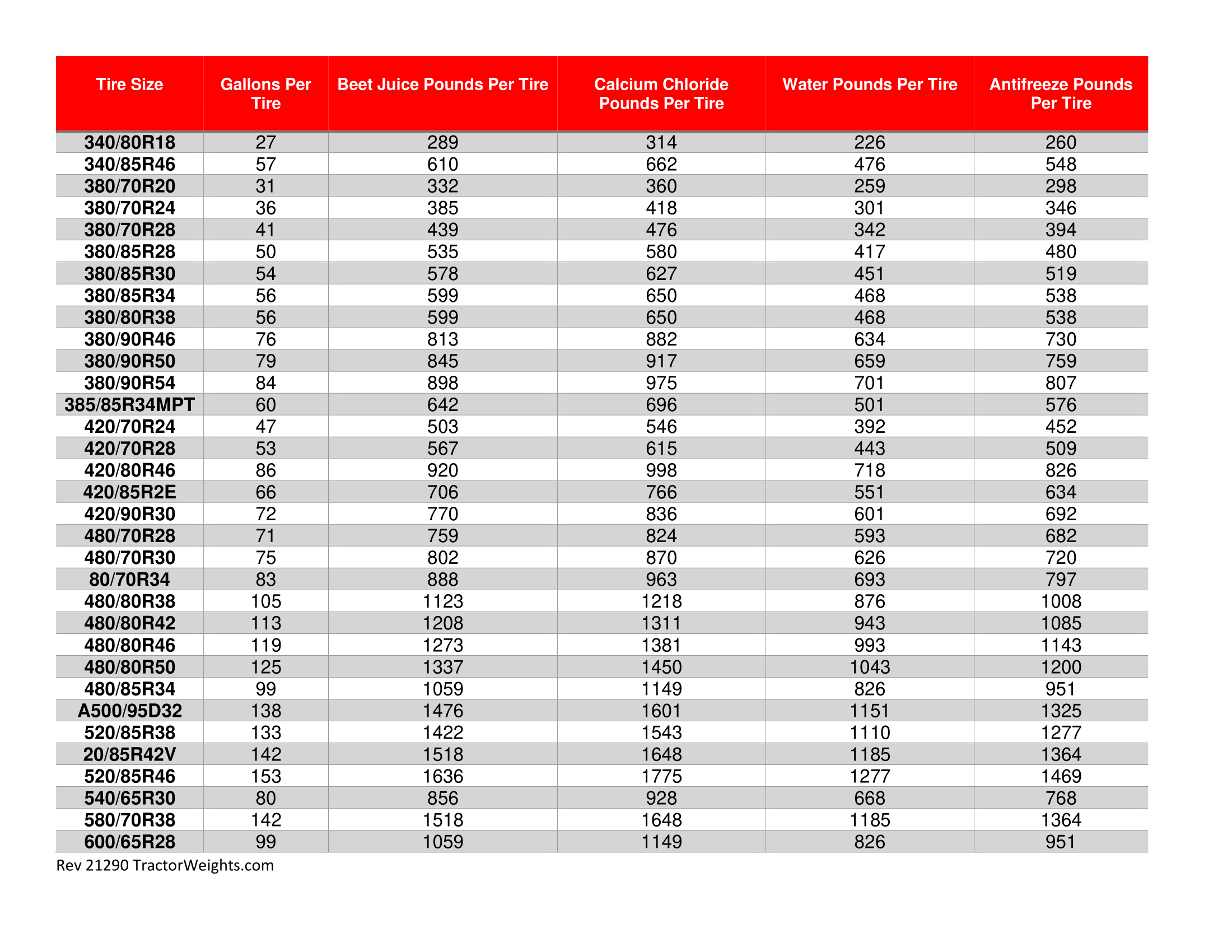

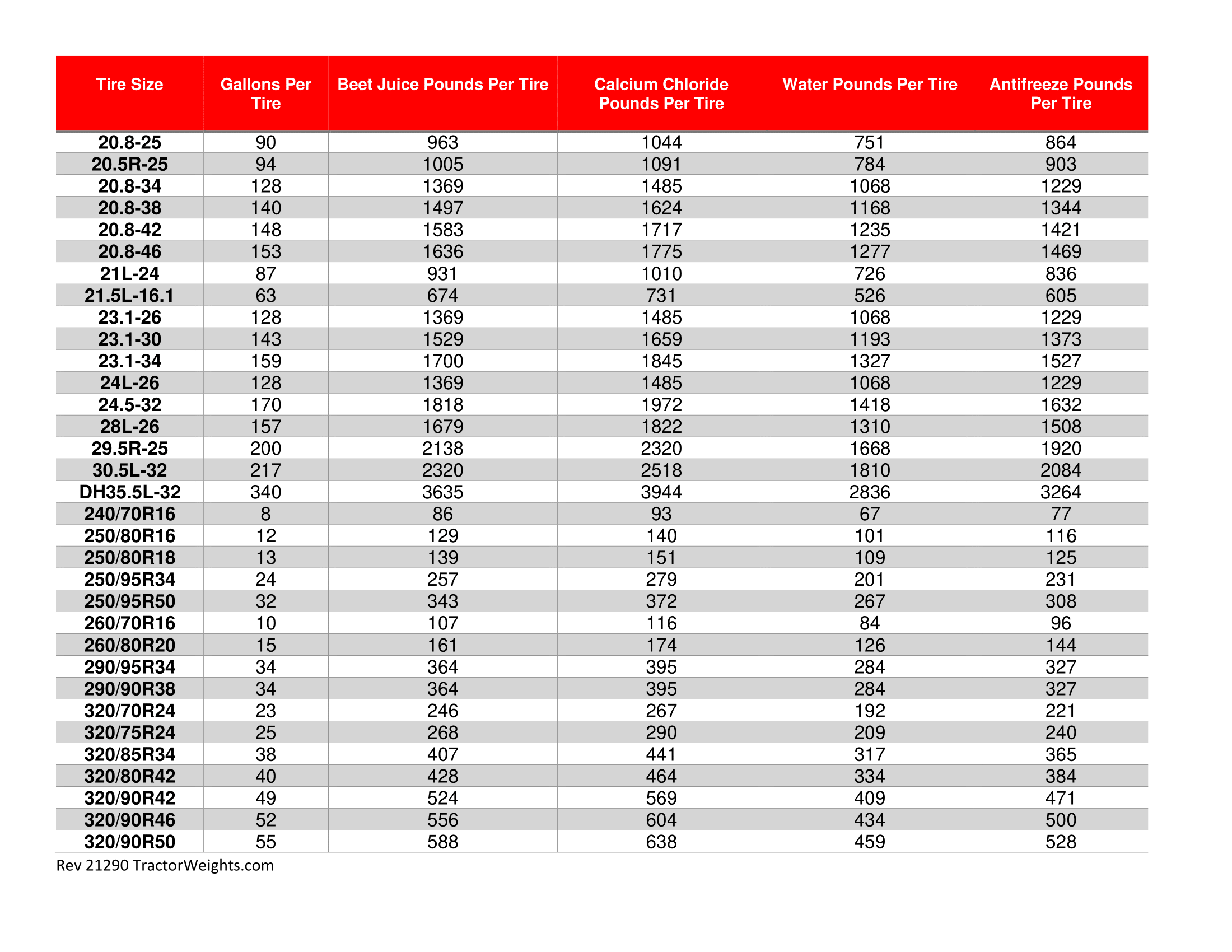

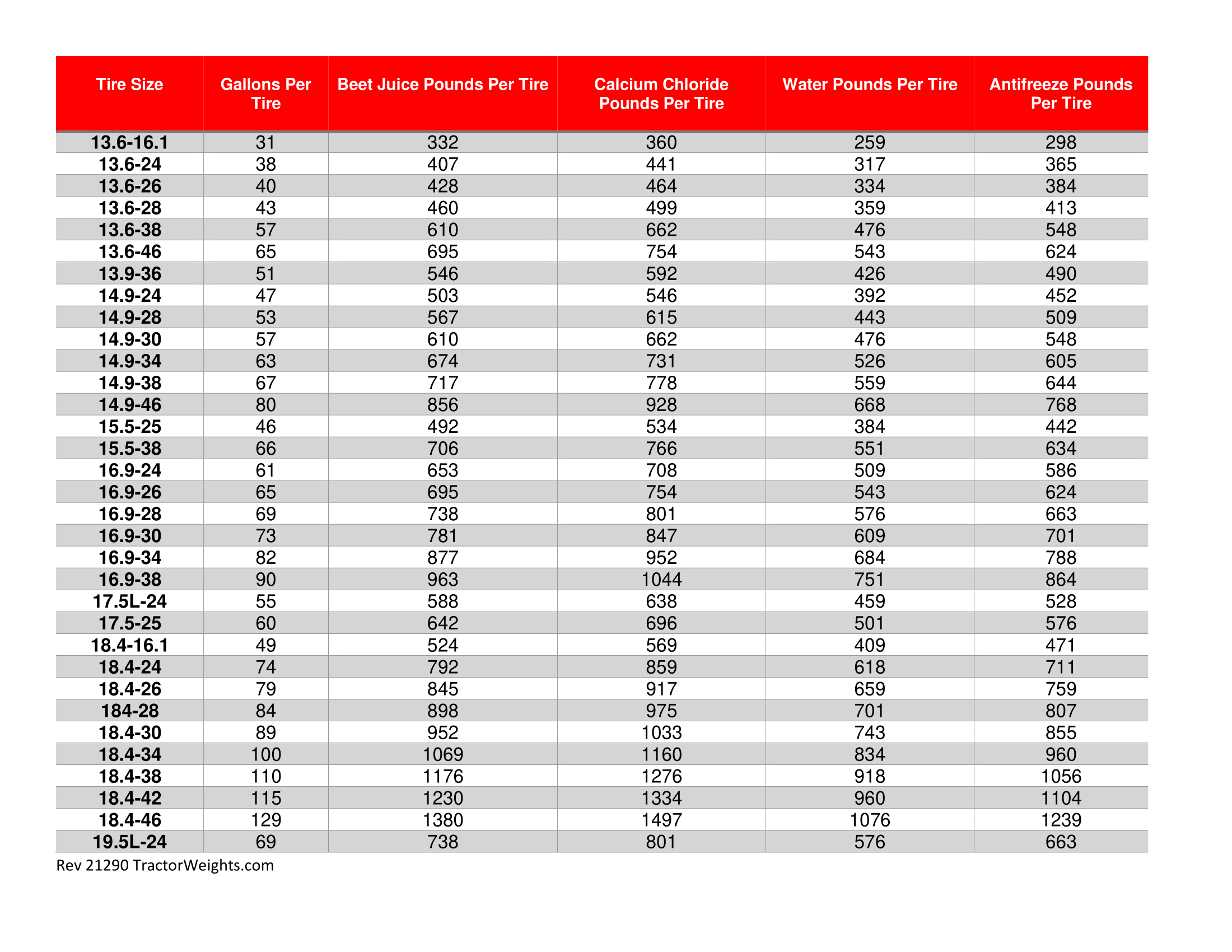

Tire Size	Gallons Per Tire	Beet Juice lb/tire	Calcium Chloride lb/tire	Water lb/tire	Antifreeze lb/tire
8.3-24	13	139	151	109	125
9.5-16	12	129	140	101	116
9.5-24	17	182	198	142	164
9.5-32	22	236	256	184	212
9.5-36	25	268	290	209	240
9.5-42	29	311	337	242	279
11.2-24	24	257	279	201	231
11.2-28	27	289	314	226	260
11.2-36	35	375	406	292	336
11.2-38	36	385	418	301	346
12.4-24	30	321	348	251	288
12.4-28	35	375	406	292	336
12.4-36	44	471	511	367	423
12.4-38	46	492	534	384	442
12.4-42	51	546	592	426	490
12.4-46	53	567	615	443	509
12.4-54	58	621	673	484	557
13.6-16.1	31	332	360	259	298
13.6-24	38	407	441	317	365
13.6-26	40	428	464	334	384
13.6-28	43	460	499	359	413
13.6-38	57	610	662	476	548
13.6-46	65	695	754	543	624
13.9-36	51	546	592	426	490
14.9-24	47	503	546	392	452
14.9-28	53	567	615	443	509
14.9-30	57	610	662	476	548
14.9-34	63	674	731	526	605
14.9-38	67	717	778	559	644
14.9-46	80	856	928	668	768
15.5-25	46	492	534	384	442
15.5-38	66	706	766	551	634
16.9-24	61	653	708	509	586
16.9-26	65	695	754	543	624
16.9-28	69	738	801	576	663
16.9-30	73	781	847	609	701
16.9-34	82	877	952	684	788
16.9-38	90	963	1044	751	864
17.5L-24	55	588	638	459	528
17.5-25	60	642	696	501	576
18.4-16.1	49	524	569	409	471
18.4-24	74	792	859	618	711
18.4-26	79	845	917	659	759
184-28	84	898	975	701	807
18.4-30	89	952	1033	743	855
18.4-34	100	1069	1160	834	960
18.4-38	110	1176	1276	918	1056
18.4-42	115	1230	1334	960	1104
18.4-46	129	1380	1497	1076	1239
19.5L-24	69	738	801	576	663
20.8-25	90	963	1044	751	864
20.5R-25	94	1005	1091	784	903
20.8-34	128	1369	1485	1068	1229
20.8-38	140	1497	1624	1168	1344
20.8-42	148	1583	1717	1235	1421
20.8-46	153	1636	1775	1277	1469
21L-24	87	931	1010	726	836
21.5L-16.1	63	674	731	526	605
23.1-26	128	1369	1485	1068	1229
23.1-30	143	1529	1659	1193	1373
23.1-34	159	1700	1845	1327	1527
24L-26	128	1369	1485	1068	1229
24.5-32	170	1818	1972	1418	1632
28L-26	157	1679	1822	1310	1508
29.5R-25	200	2138	2320	1668	1920
30.5L-32	217	2320	2518	1810	2084
DH35.5L-32	340	3635	3944	2836	3264
240/70R16	8	86	93	67	77
250/80R16	12	129	140	101	116
250/80R18	13	139	151	109	125
250/95R34	24	257	279	201	231
250/95R50	32	343	372	267	308
260/70R16	10	107	116	84	96
260/80R20	15	161	174	126	144
290/95R34	34	364	395	284	327
290/90R38	34	364	395	284	327
320/70R24	23	246	267	192	221
320/75R24	25	268	290	209	240
320/85R34	38	407	441	317	365
320/80R42	40	428	464	334	384
320/90R42	49	524	569	409	471
320/90R46	52	556	604	434	500
320/90R50	55	588	638	459	528
340/80R18	27	289	314	226	260
340/85R46	57	610	662	476	548
380/70R20	31	332	360	259	298
380/70R24	36	385	418	301	346
380/70R28	41	439	476	342	394
380/85R28	50	535	580	417	480
380/85R30	54	578	627	451	519
380/85R34	56	599	650	468	538
380/80R38	56	599	650	468	538
380/90R46	76	813	882	634	730
380/90R50	79	845	917	659	759
380/90R54	84	898	975	701	807
385/85R34MPT	60	642	696	501	576
420/70R24	47	503	546	392	452
420/70R28	53	567	615	443	509
420/80R46	86	920	998	718	826
420/85R2E	66	706	766	551	634
420/90R30	72	770	836	601	692
480/70R28	71	759	824	593	682
480/70R30	75	802	870	626	720
80/70R34	83	888	963	693	797
480/80R38	105	1123	1218	876	1008
480/80R42	113	1208	1311	943	1085
480/80R46	119	1273	1381	993	1143
480/80R50	125	1337	1450	1043	1200
480/85R34	99	1059	1149	826	951
A500/95D32	138	1476	1601	1151	1325
520/85R38	133	1422	1543	1110	1277
20/85R42V	142	1518	1648	1185	1364
520/85R46	153	1636	1775	1277	1469
540/65R30	80	856	928	668	768
580/70R38	142	1518	1648	1185	1364
600/65R28	99	1059	1149	826	951
620/75R26	125	1337	1450	1043	1200
620/70R42	169	1807	1961	1410	1623
620/75R46	183	1957	2123	1527	1757
650/75R34	162	1732	1880	1352	1556
650/75R34	185	1978	2146	1543	1776
650/85R38	229	2449	2657	1910	2199
650/65R42	164	1754	1903	1368	1575
710/70R38	201	2149	2332	1677	1930
710/70R42	228	2438	2645	1902	2189
750/65R26	168	1796	1949	1402	1613
800/65R32	202	2160	2344	1685	1940
800/70R38	265	2833	3074	2211	2544
900/50R42	235	2513	2726	1960	2256
900/60R32	270	2887	3132	2252	2592
900/65R32	289	3090	3353	2411	2775

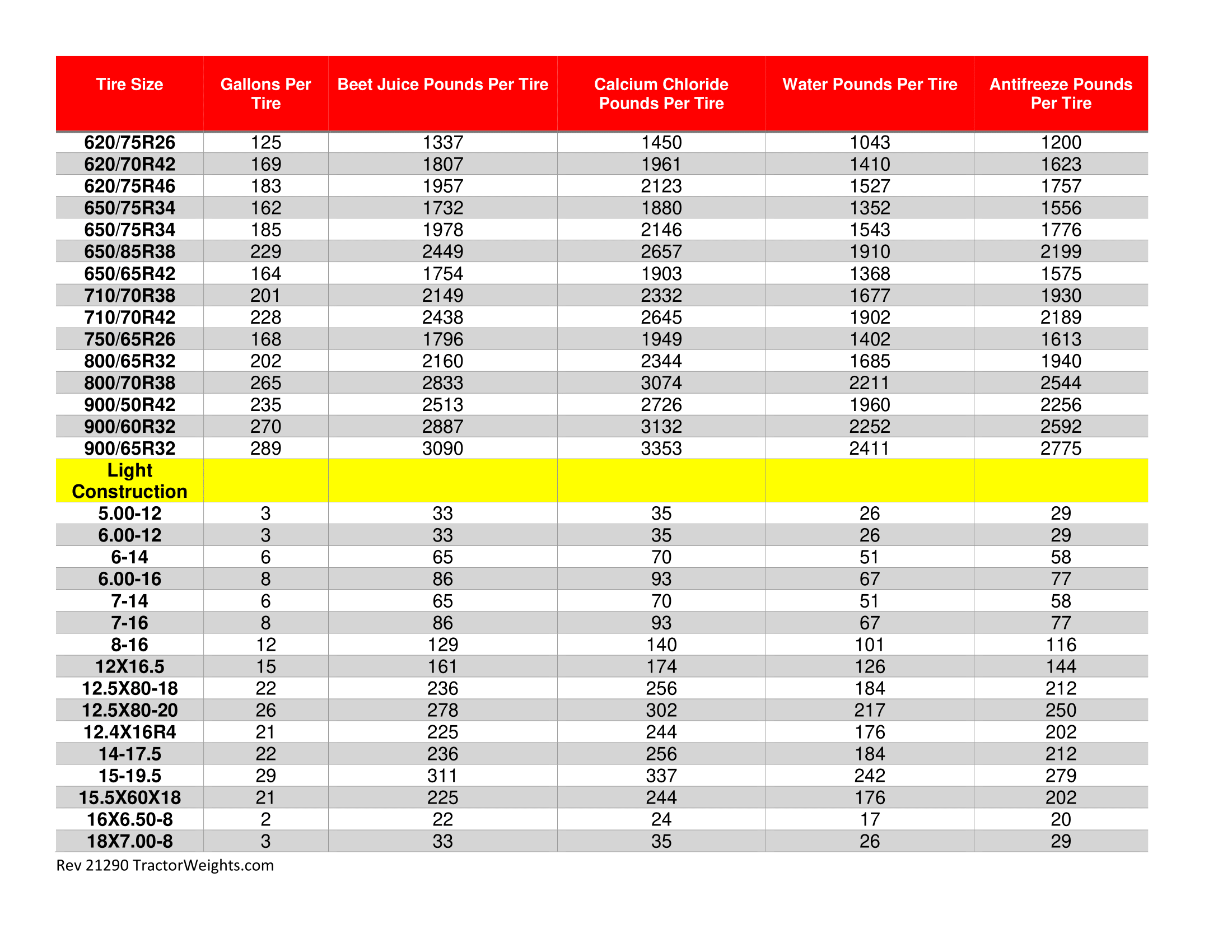

Light Construction

46 tire sizes

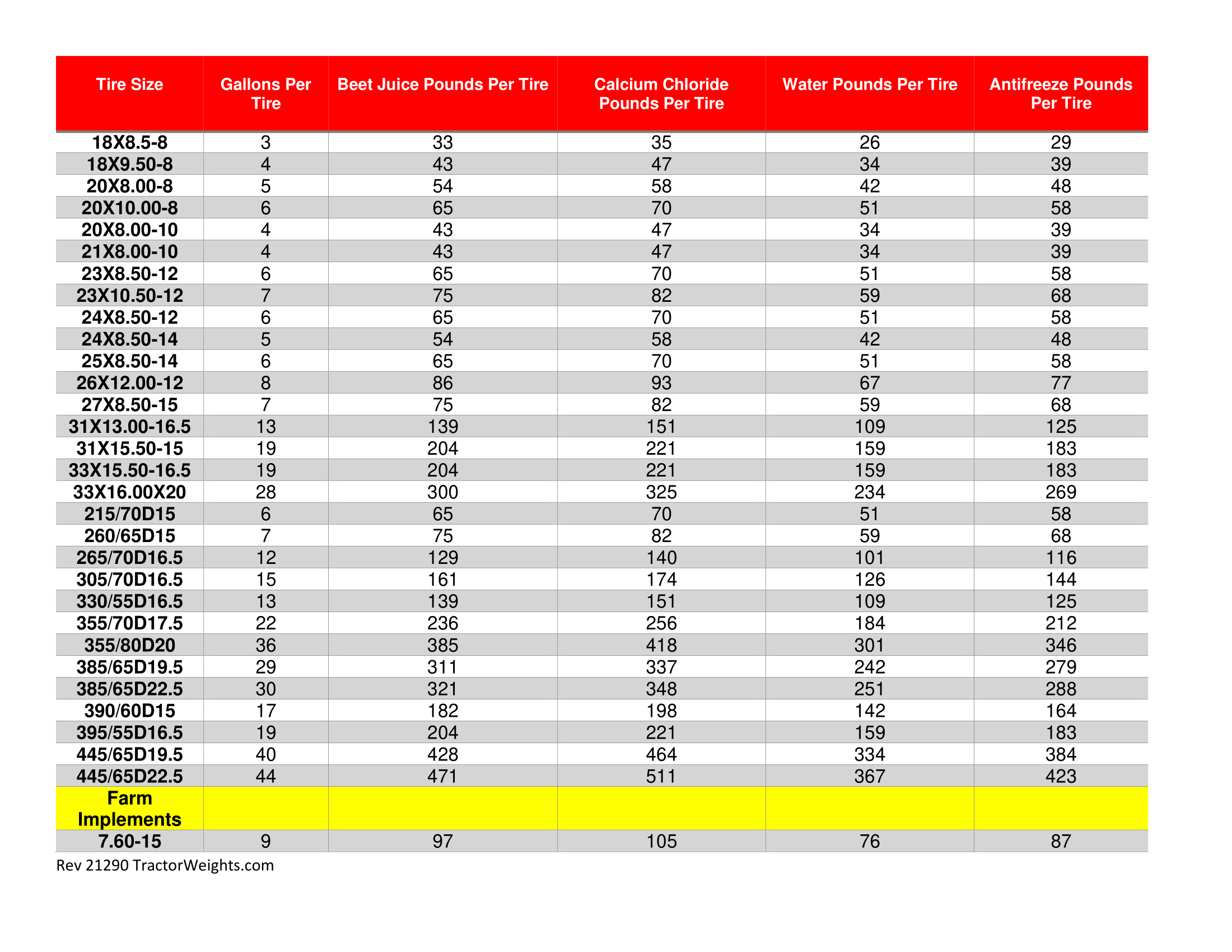

Tire Size	Gallons Per Tire	Beet Juice lb/tire	Calcium Chloride lb/tire	Water lb/tire	Antifreeze lb/tire
5.00-12	3	33	35	26	29
6.00-12	3	33	35	26	29
6-14	6	65	70	51	58
6.00-16	8	86	93	67	77
7-14	6	65	70	51	58
7-16	8	86	93	67	77
8-16	12	129	140	101	116
12X16.5	15	161	174	126	144
12.5X80-18	22	236	256	184	212
12.5X80-20	26	278	302	217	250
12.4X16R4	21	225	244	176	202
14-17.5	22	236	256	184	212
15-19.5	29	311	337	242	279
15.5X60X18	21	225	244	176	202
16X6.50-8	2	22	24	17	20
18X7.00-8	3	33	35	26	29
18X8.5-8	3	33	35	26	29
18X9.50-8	4	43	47	34	39
20X8.00-8	5	54	58	42	48
20X10.00-8	6	65	70	51	58
20X8.00-10	4	43	47	34	39
21X8.00-10	4	43	47	34	39
23X8.50-12	6	65	70	51	58
23X10.50-12	7	75	82	59	68
24X8.50-12	6	65	70	51	58
24X8.50-14	5	54	58	42	48
25X8.50-14	6	65	70	51	58
26X12.00-12	8	86	93	67	77
27X8.50-15	7	75	82	59	68
31X13.00-16.5	13	139	151	109	125
31X15.50-15	19	204	221	159	183
33X15.50-16.5	19	204	221	159	183
33X16.00X20	28	300	325	234	269
215/70D15	6	65	70	51	58
260/65D15	7	75	82	59	68
265/70D16.5	12	129	140	101	116
305/70D16.5	15	161	174	126	144
330/55D16.5	13	139	151	109	125
355/70D17.5	22	236	256	184	212
355/80D20	36	385	418	301	346
385/65D19.5	29	311	337	242	279
385/65D22.5	30	321	348	251	288
390/60D15	17	182	198	142	164
395/55D16.5	19	204	221	159	183
445/65D19.5	40	428	464	334	384
445/65D22.5	44	471	511	367	423

Farm Implements

18 tire sizes

Tire Size	Gallons Per Tire	Beet Juice lb/tire	Calcium Chloride lb/tire	Water lb/tire	Antifreeze lb/tire
7.60-15	9	97	105	76	87
7.50-14	7	75	82	59	68
7.60-16	9	97	105	76	87
8.5L-14	9	97	105	76	87
9.5L-14	13	139	151	109	125
9.5L-15	13	139	151	109	125
11L-14	15	161	174	126	144
11L-15	16	172	186	134	154
11L-16	17	182	198	142	164
12.5L-15	19	204	221	159	183
12.5L-16	20	214	232	167	192
13.50-16.1	31	332	360	259	298
16.5L-16.1	40	428	464	334	384
19L-16.1	53	567	615	443	509
21.5L-16.1	63	674	731	526	605
22.5L-16.1	52	556	604	434	500
41/18LL-16.1	50	535	580	417	480
43X1600-20	38	407	441	317	365

Front Tires

13 tire sizes

Tire Size	Gallons Per Tire	Beet Juice lb/tire	Calcium Chloride lb/tire	Water lb/tire	Antifreeze lb/tire
4.00-12	2	22	24	17	20
4.00-15	3	33	35	26	29
4.00-19	3	33	35	26	29
5.00-15	4	43	47	34	39
5.50-16	5	54	58	42	48
6.00-14	6	65	70	51	58
6.00-16	6	65	70	51	58
6.50-16	7	75	82	59	68
7.5L-15	8	86	93	67	77
7.50-16	10	107	116	84	96
7.50/8.00-16	11	118	128	92	106
7.50-18	11	118	128	92	106
7.50-20	11	118	128	92	106

Garden Tires

7 tire sizes

Tire Size	Gallons Per Tire	Beet Juice lb/tire	Calcium Chloride lb/tire	Water lb/tire	Antifreeze lb/tire
5-12	3	33	35	26	29
6-12	4	43	47	34	39
6-14	6	65	70	51	58
6.00-16	8	86	93	67	77
7-16	8	86	93	67	77
8-16	12	129	140	101	116
18.700-8	3	33	35	26	29

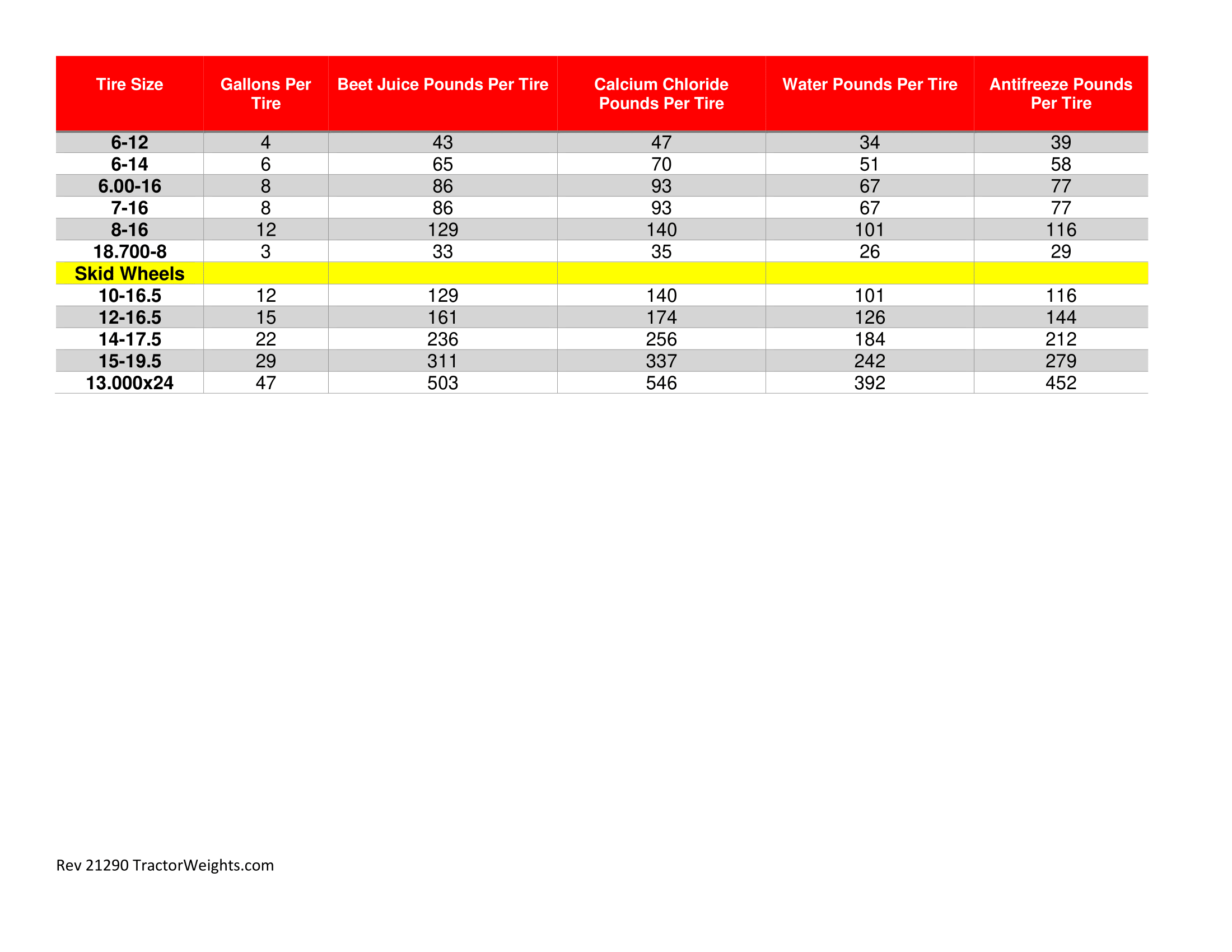

Skid Wheels

5 tire sizes

Tire Size	Gallons Per Tire	Beet Juice lb/tire	Calcium Chloride lb/tire	Water lb/tire	Antifreeze lb/tire
10-16.5	12	129	140	101	116
12-16.5	15	161	174	126	144
14-17.5	22	236	256	184	212
15-19.5	29	311	337	242	279
13.000x24	47	503	546	392	452

Terra Tires (NHS)

34 tire sizes

RimGuard® or Beet Juice only. Terra Tire values are listed separately from the main chart. Use the Terra-specific gallons and pounds-per-tire values below; do not substitute water, calcium chloride, or antifreeze figures from another tire-size listing.

Tire Size	Gallons Per Tire	RimGuard® / Beet Juice lb/tire
23x8.50-12	6	59
23x10.50-12	7	73
23x12.00-12	10	107
24x12-12	8	80
25x7.50-15	6	64
25x10.50-15	7	75
25x12.50-15	8	86
26x12.00-12	8	89
27x8.50-15	7	75
27x9.50-15	9	96
27x12.50-15	10	107
29x12.50-15	14	150
31x12.50-15	18	193
31x13.50-15	19	203
31x15.50-15	20	214
33x12.50-15	22	235
35x12.50R-16.5	21	225
36x13.50-15	30	321
38x20.00-16.1	42	449
38x14.00-20	30	321
41x14.00-20	32	342
42x25.00-20	66	706
44x18.00-20	56	599
44x24.00-20	110	1,177
48x25.00-20	92	984
48x31.00-20	125	1,338
48x20.00-24	54	575
54x31.00-26	117	1,252
66x43.00-25	327	3,499
66x44.00-25	347	3,713
67x33.00-25	224	2,397
67x34.00-26	220	2,354
67x34.00-30	202	2,161
73x44.00-32	372	3,980
